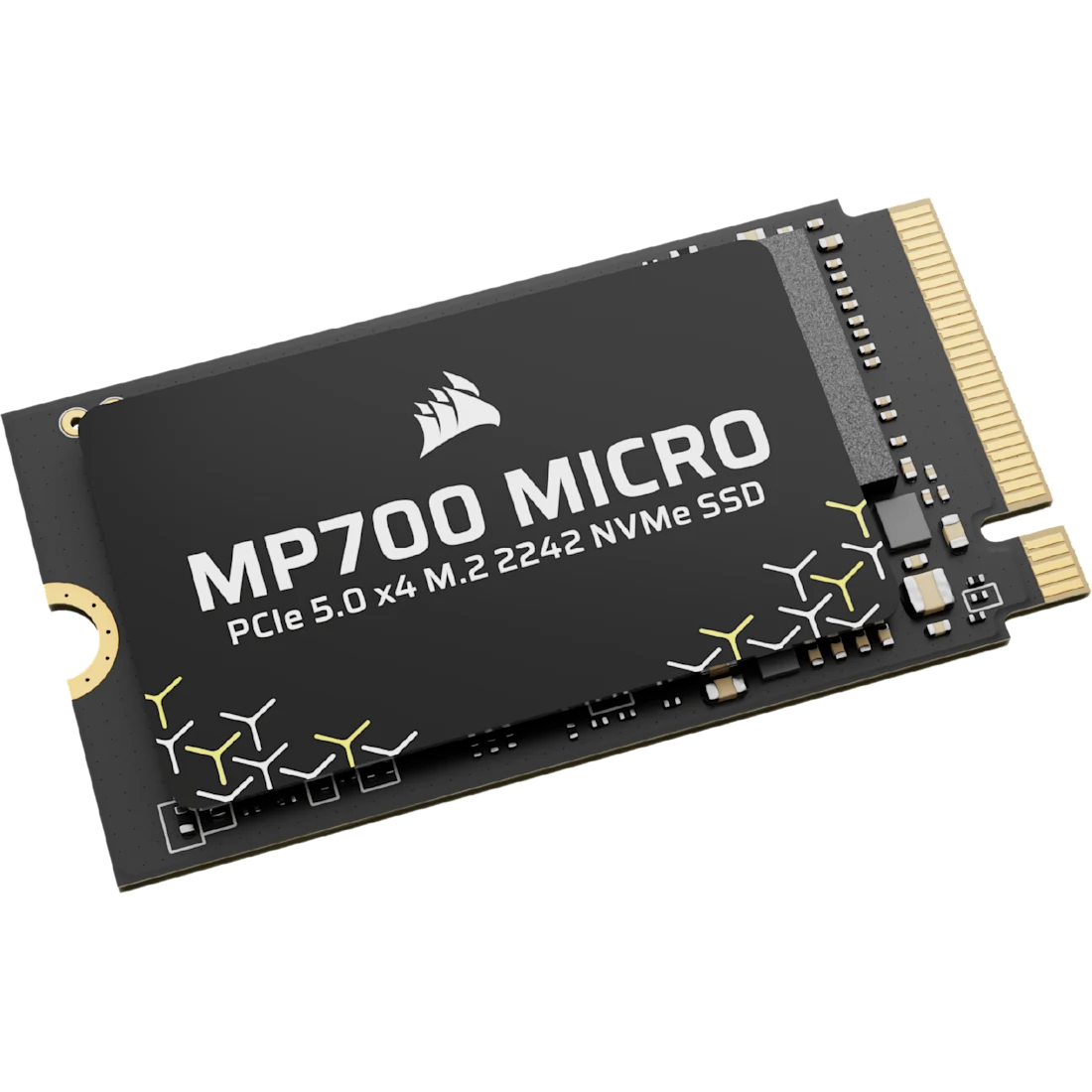

Corsair MP700 Micro Puts 4TB Gen5 Storage in a Tiny M.2 2242 SSD

The Corsair MP700 Micro 4TB is not interesting just because it is fast. Its bigger story is that it puts serious capacity into the compact M.2 2242 format, a size used by some thin laptops, small-form-factor systems, and handheld-style PCs where a full-length M.2 2280 drive simply will not fit. As of Monday, August 24, 2026, that matters because portable gaming machines are asking more from storage than they did a few years ago: bigger game installs, more shader cache data, Windows updates, launchers, captures, mods, and sometimes a full desktop workload in a device small enough to hold. Tom’s Hardware highlighted the MP700 Micro in its August 21, 2026 Innovation Awards, pointing to its mix of high capacity, single-sided M.2 2242 design, PCIe 5.0 performance, and power efficiency as the reason it stands out among recent SSDs. (tomshardware.com)

Corsair lists the MP700 Micro 4TB as a PCIe 5.0 x4 NVMe 2.0 SSD in the M.2 2242 form factor, using high-density 3D TLC NAND. The official rated sequential performance is up to 10,000MB/s reads and 8,500MB/s writes, with Corsair noting that performance and endurance can vary by capacity and that performance is reduced on Gen4 platforms. The product page also lists 2TB and 4TB capacity options, with the 4TB model carrying the SKU CSSD-F4000GBMP700MCR. (corsair.com)

• Capacity: 4TB, with a 2TB option also listed
• Form factor: M.2 2242
• Interface: PCIe 5.0 x4, NVMe 2.0
• NAND: High-density 3D TLC
• Rated sequential read: Up to 10,000MB/s
• Rated sequential write: Up to 8,500MB/s

For a desktop PC, storage upgrades are often simple: add another 2280 SSD, use a second M.2 slot, or drop in a larger SATA drive if the system still has room. Compact handhelds and mini PCs are not that flexible. Many smaller systems have only one internal SSD slot, and some are built around shorter M.2 sizes. That makes capacity per square millimeter more important than a benchmark chart. A 4TB drive can hold a larger game library without relying as heavily on microSD cards, external USB storage, or constant uninstall cycles. For handheld PC users, that is especially useful when switching between large modern games, emulation libraries, local media, and productivity files on the same machine.

View ASUS ROG Ally on partner website

The MP700 Micro is a PCIe 5.0 SSD, but one of its practical angles is that many compact devices still use PCIe 4.0 links. Tom’s Hardware noted that the drive’s rated throughput is enough to saturate a PCIe 4.0 link commonly used by devices in this small-footprint category, while also listing peak random performance at up to 1.3 million read IOPS and 1.4 million write IOPS. (tomshardware.com) That does not mean every handheld or laptop will unlock the drive’s full ceiling, and buyers still need to check physical slot size, single-sided clearance, BIOS support, thermals, and platform limitations. Still, the point is clear: compact SSDs no longer have to feel like a major compromise compared with larger desktop-oriented drives.

Buy Lenovo Legion Go S Mobile Console here

Small PCs do not have the same airflow or thermal headroom as a desktop tower, so raw speed is only one part of the storage equation. A tiny SSD that runs too hot or draws too much power can be a poor match for a handheld, even if its spec sheet looks impressive. Tom’s Hardware specifically called out the MP700 Micro’s power efficiency as a benefit for battery-powered devices, alongside its single-sided M.2 2242 layout. (tomshardware.com) Corsair’s own positioning also focuses on thin-and-light devices and small-form-factor workstations, which fits the broader trend: high-end storage is moving into tighter spaces where efficiency and compatibility matter as much as headline transfer rates. (corsair.com)

See MSI Claw 8 AI+ price

The main catch is cost. SSD pricing has remained a pressure point in 2026, and Tom’s Hardware linked that wider issue to AI-driven memory and storage shortages in its Innovation Awards coverage. (tomshardware.com) That makes the MP700 Micro 4TB an interesting product to watch rather than an automatic upgrade for everyone. For users with a compatible compact laptop, mini PC, or handheld system, it shows where premium small-format storage is heading: more capacity, higher bandwidth, and fewer compromises in a footprint that used to feel limiting. The best approach is still to confirm device compatibility first, then compare the live price against how much internal storage you actually need.
