GlobalFoundries FDX Fusion Puts 7nm-Class FD-SOI Back on the Edge AI Map

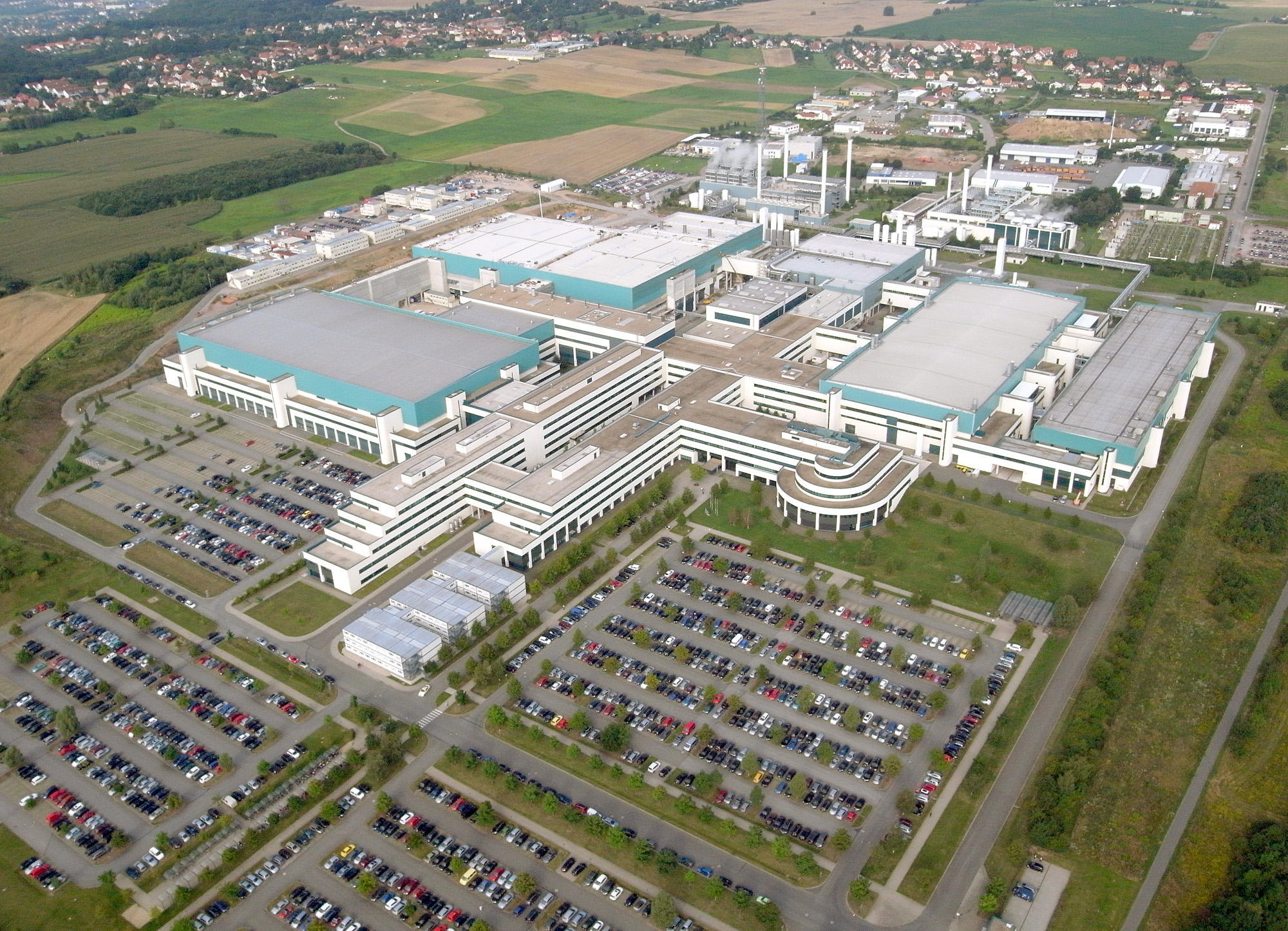

GlobalFoundries’ FDX Fusion roadmap is interesting because it does not frame 7nm-class technology as another pure speed contest. Announced on October 9, 2026, the platform is based on FD-SOI, or fully depleted silicon-on-insulator, and is aimed at what GF calls “Physical AI” systems: chips that sit closer to the real world, read sensor data, process it locally, communicate wirelessly, and stay within tight power budgets. As of October 14, 2026, this is still a roadmap rather than a shipping manufacturing process, with demonstrator silicon planned for customer evaluation in early 2027, an initial PDK planned for mid-2027, and manufacturing targeted for 2028 in Dresden, Germany. (gf.gcs-web.com)

FD-SOI has always had a different appeal from FinFET or gate-all-around nodes. Instead of chasing the highest possible transistor density for flagship CPUs, GPUs, or smartphone SoCs, it offers knobs that can be useful in low-power and mixed-signal designs. Body-biasing is one of the big reasons: designers can tune transistor behavior to favor lower leakage or higher performance depending on workload and operating mode. That matters for edge AI devices that may spend long periods waiting, sensing, waking up, and then running bursts of local inference. GF says FDX Fusion is expected to deliver 7nm-class digital performance, more than 2x density improvement versus first-generation FDX technology, and RF performance up to 0.5 THz fT/fmax. (gf.com)

See Dell 16 AI Powered 2-in-1 Laptop price

The more practical angle is integration. Edge AI hardware is rarely just a block of logic. A robotics controller, automotive radar processor, industrial sensor hub, or wearable AI device may need digital compute, analog front ends, RF connectivity, embedded memory, security features, and power management on the same die or in a tightly integrated package. FDX Fusion is being positioned around that mix. GF lists support for advanced digital, RF, analog, mixed-signal, memory, and low-power capabilities, while also pointing to embedded nonvolatile memory options such as MRAM and RRAM across its FDX technology family. That makes the platform more about efficient system integration than simply replacing a leading-edge FinFET node. (gf.com)

View DJI Flip Drone on partner website

One of the more forward-looking pieces of the roadmap is in-memory computing. For edge AI, moving data back and forth between memory and compute can be a major energy cost, especially in always-on or battery-powered systems. Bringing some computation closer to the memory array could help certain workloads, particularly sensor filtering, wake-word style detection, lightweight vision, and compact neural-network inference. GF has not published production-chip performance numbers for FDX Fusion, so it would be premature to treat this as a proven AI accelerator platform. Still, the combination of FD-SOI behavior, embedded memory, and mixed-signal integration gives chip designers a different path from simply scaling logic and adding more SRAM. (gf.gcs-web.com)

Buy NVIDIA DGX Spark Personal AI Desktop Supercomputer here

The main challenge is not only whether the process works, but whether the design ecosystem gets ready quickly enough. A new platform needs reliable PDKs, qualified IP, memory compilers, RF models, automotive-grade flows, EDA support, and enough customer confidence to justify new tape-outs. The timeline gives GF a narrow but realistic runway: demo silicon in early 2027, the first PDK in mid-2027, and production in 2028. That means FDX Fusion is unlikely to reshape edge AI overnight, but it could become relevant for companies that want a blend of low-power compute, sensing, wireless communication, and embedded memory without moving everything to the most expensive leading-edge logic nodes. For automotive sensing, industrial automation, robotics, and connected edge devices, that may be exactly the conversation FD-SOI needed to re-enter. (gf.gcs-web.com)
