Samsung HBM5 Mockup Puts Heat Path Block at the Center of AI Memory Cooling

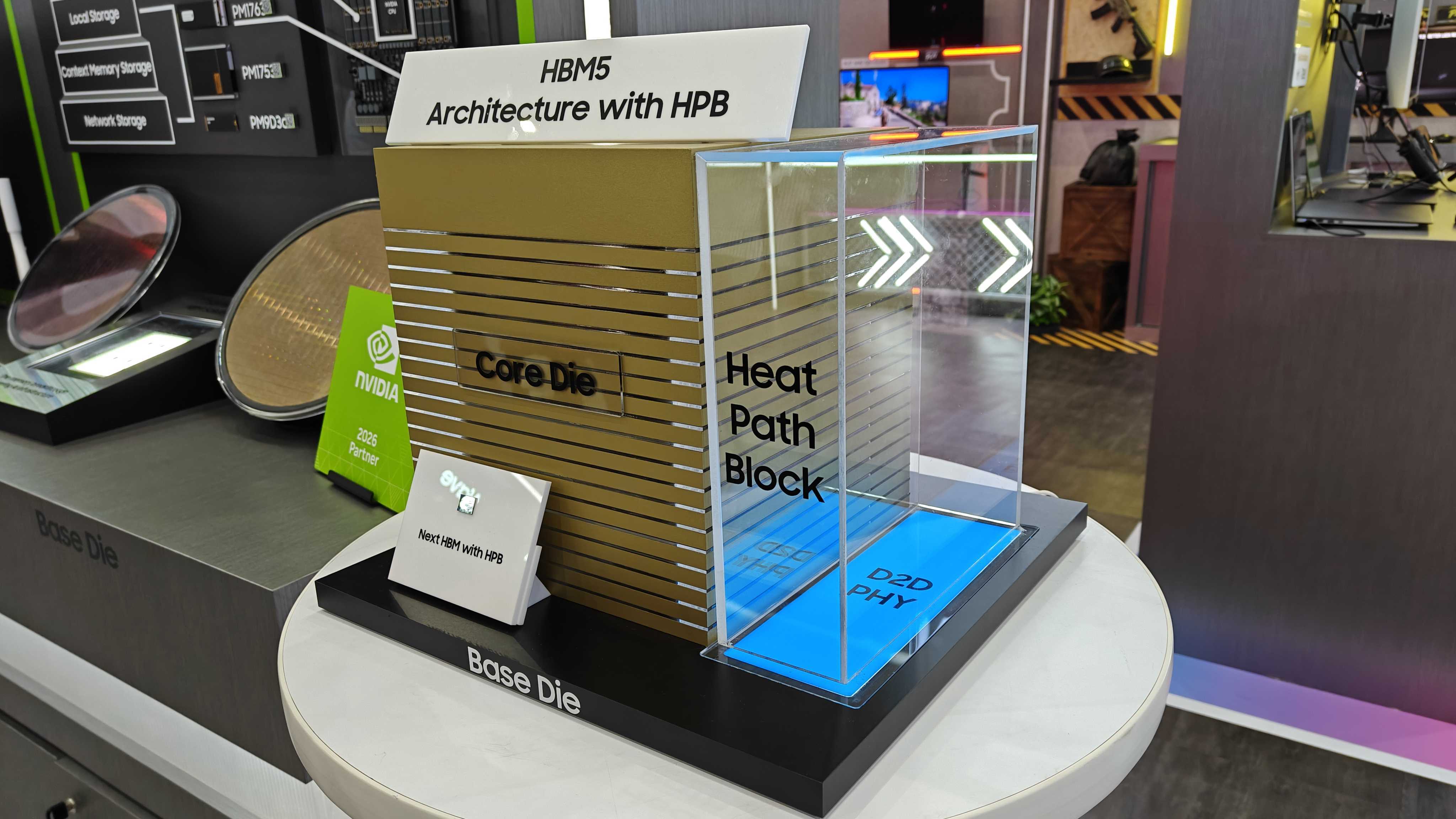

Samsung’s first physical HBM5 mockup, shown at Computex 2026 in Taipei earlier this month, was not a finished product launch or a performance reveal. The more interesting detail was the thermal structure beside it: Heat Path Block, or HPB. As of Friday, June 12, 2026, HBM5 remains a next-generation memory technology, so exact commercial specifications, customer platforms, and real-world performance numbers are still not public. What Samsung did show, however, is enough to make one thing clear: the next AI memory fight is moving deeper into the package, where heat has fewer easy ways to escape. (tomshardware.com)

High-bandwidth memory is central to modern AI accelerators because it places stacked DRAM very close to the processor, cutting down the distance data has to travel. That layout is great for bandwidth and power efficiency, but it also creates a dense thermal neighborhood. Multiple memory dies are stacked vertically, the base die talks to the GPU or accelerator through high-speed die-to-die links, and the processor beside it is already producing a lot of heat. As stack heights, signaling rates, and package density rise, the old approach of simply pulling heat out through the top of the package becomes harder to rely on.

See NVIDIA DGX Spark Personal AI Desktop Supercomputer price

Samsung’s HPB concept appears to focus on creating a more direct route for heat inside the HBM package, rather than depending only on heat spreading through the memory core dies. Reports from the Computex display describe HPB as a separate heat path that can draw thermal energy away from hotter internal regions of the stack and toward a heat spreader. The target area is especially important around the D2D PHY, the physical interface that links the HBM base die with the processor package. That zone becomes a hotspot because it is where huge amounts of data are moving across very small interconnects. (tomshardware.com)

View ASUS GeForce RTX 5090 on partner website

The timing also matters because SK hynix recently announced its own iHBM thermal approach for next-generation HBM. Instead of describing a Heat Path Block, SK hynix says its design embeds Integrated Cooling Elements inside the HBM package using electrically non-conductive, thermally conductive silicon-based material. The company says the method can reduce thermal resistance by more than 30% compared with conventional designs, and it plans to apply the technology to future products including HBM5. That makes the comparison interesting: Samsung is highlighting a path to move heat away, while SK hynix is emphasizing cooling elements closer to the heat source. (news.skhynix.com)

Buy Lenovo Legion Pro 7i laptop with Core Ultra 9 and NVIDIA RTX 5090 24GB here

For AI hardware buyers, HBM has often been discussed in terms of stack count, capacity, bandwidth, and supply. Those metrics still matter, but thermal design is becoming harder to treat as a background detail. If memory runs hotter, systems may need larger cooling infrastructure, more careful packaging, or lower operating margins. In dense AI servers, that can affect board design, rack cooling, reliability targets, and sustained performance under long training or inference workloads. Samsung’s HBM5 mockup is therefore less about a single visible component and more about a shift in priorities: future accelerators may be judged not only by how fast their memory can move data, but also by how efficiently the package can move heat.
